Workstation Jib Cranes

Do you feel like your workers are struggling to meet production quotas, or you're missing that final piece to really streamline your production process? If so, you may want to consider a jib crane.

A jib crane is a type of overhead lifting device that's often used in a smaller work cell area for repetitive and unique lifting tasks. Jib cranes are extremely versatile and can also be paired with overhead bridge cranes to maximize production.

This kind cranes can rotate by manually or electrically control. You can choose the control mode base your actual situation. And, generally, it is suitable for use under the working strength of medium-load or light-load.Safe working load can up to about 10t.

Because of the jib crane's favorable structure, it can easily adapt to the customers specific requirements and can be installed in any position such as floors and walls .In order to save money and seek convenient, combined with our customers' actual situation, our experienced designers can even mount the cranes on the existing columns or other crane's beam.

Request for Quotation

European type pillar mounted jib crane 2

European type pillar mounted jib crane 1

Advantages

On some designs, you can use your building's existing columns or overhead beams to mount our jib cranes, saving you money.
Capacities: from 0.5 ton to 5 ton standard and up to 16 ton depending on span and jib series.
The structure of this kind crane is small and flexible. It can work as a supplement for a gantry or overhead crane. By working together, the productivity of your workshop can ultimately increase to the maximum.
If the material you need to move is light and small, launch a high-power overhead or gantry crane is a great waste. Under those circumstances, low-power crane hand goods more effectively.

Our Unique Advantages

Because of the accurate of the beam alignment, the beam and trolley are in better control. The unintended movements of beam and trolley can be minimized and so does the possibility of damages to the crane operaters and the equipment itself.

There is a great diversity of operation types from full manual to full powered. You can choose the most practical way for yourself according the special situation. Each installation type such as wall, column and freestanding mounting is available.
The negative effects of off-center loading on jib crane’s quality is not being taken seriously by most jib crane designers. To eliminate off-center loading problems, we designe the slide the die set on the press bolster to make the highest load move towards the press centerline.
We have advanced technology on getting the optimal highest hook position applied to low headroom jib cranes. And our wall mounted jib cranes can squeeze into the tightest plant, warehouse or other industrial space. So, the scope of available installation space is bigger and the utilization rate is higer.
We add an emergency stop system to strength safety. If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.

Most important of all, we always keep our customer’s safety in our mind!

Types of Cranes for Different Working Conditions

Wall Mounted Jib Crane

Capacity: up to 5 ton
Arm length: up to 10 m
Lifting height:up to 20m
Work duty: M3-M5
Rotation angle: 120-360°
Raged voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode: Floor control / Remote control

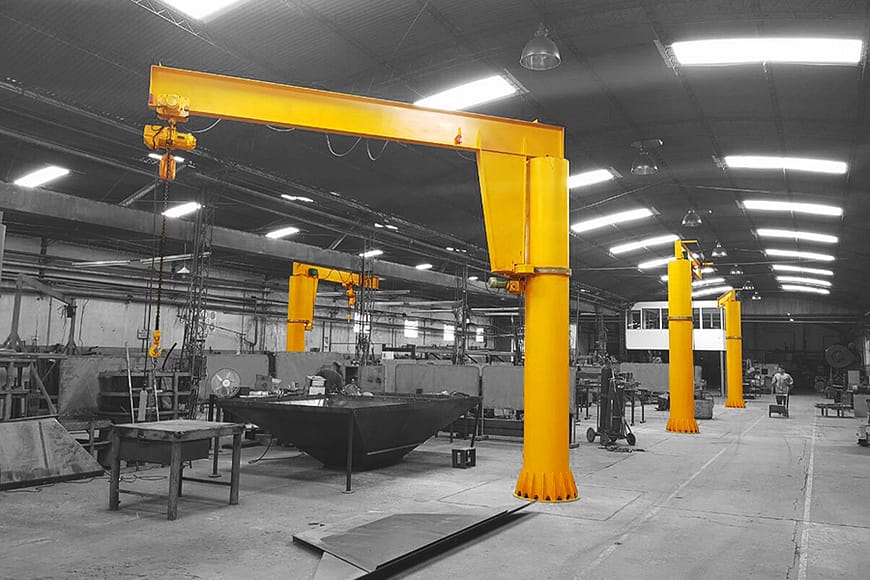

Free Standing JIB Crane

Capacity: up to 16 tons
Arm length: up to 16 m
Lifting height:up to 12 (floor to underside of boom)
Work duty: M3-M5
Rotation angle: 120-360°
Raged voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode: Floor control / Remote control

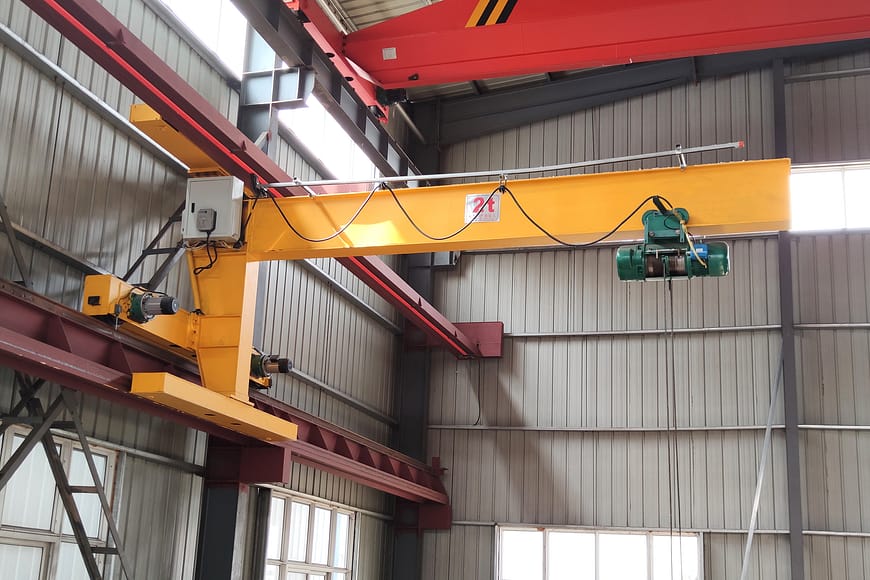

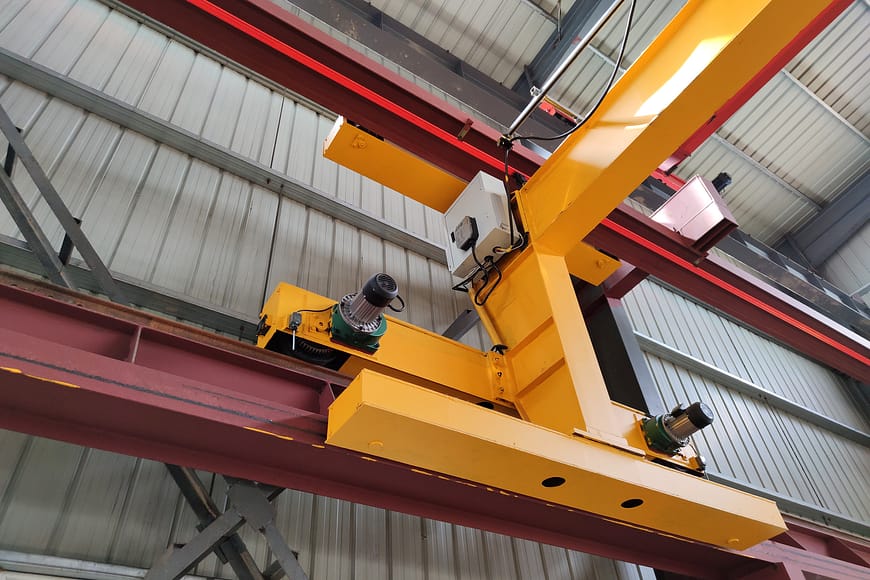

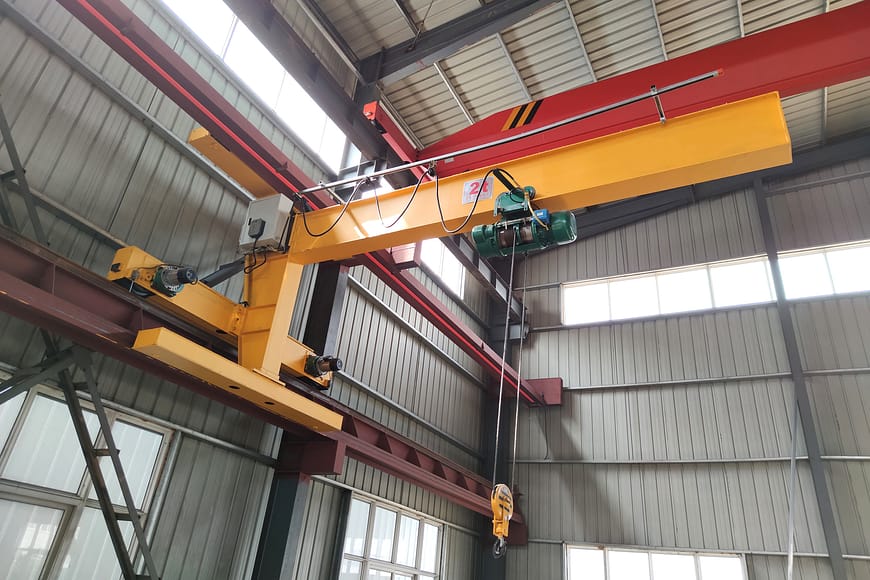

Wall Travelling JIB Crane

Capacity: up to 5 ton
Arm length: up to 10 m
Lifting height:up to 20m
Work duty: M3-M5
Rotation angle: 120-360°
Raged voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode: Floor control / Remote contro

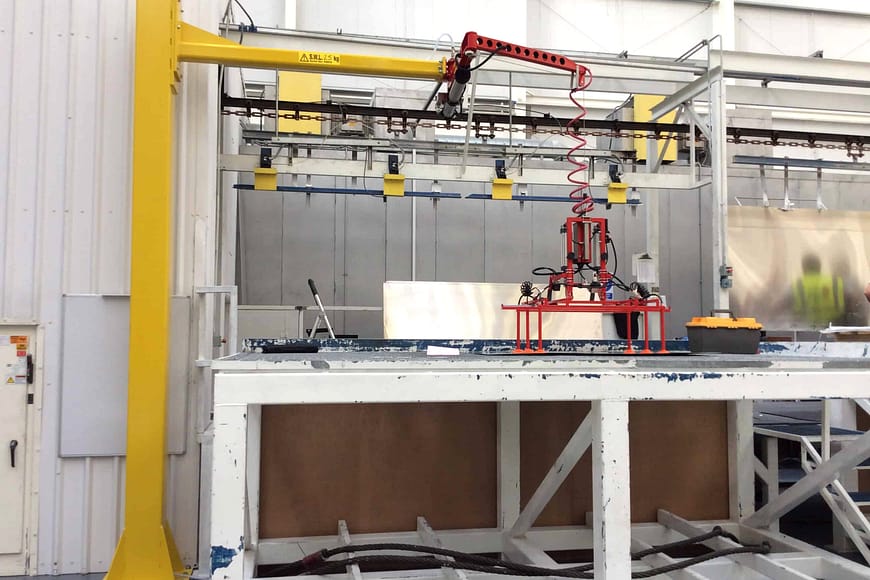

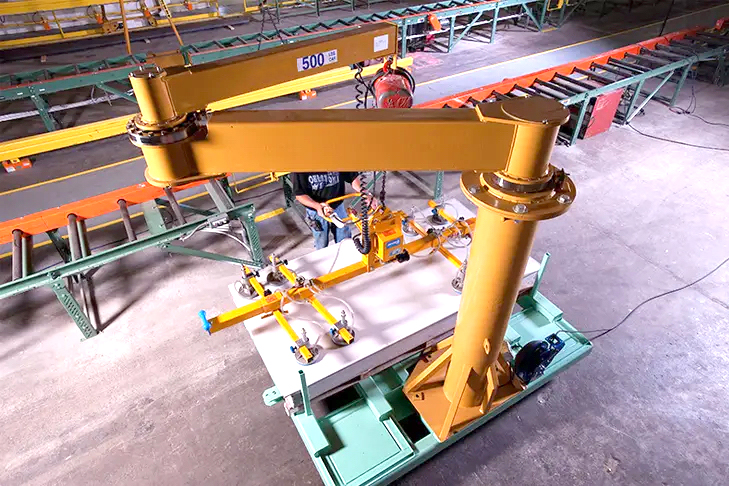

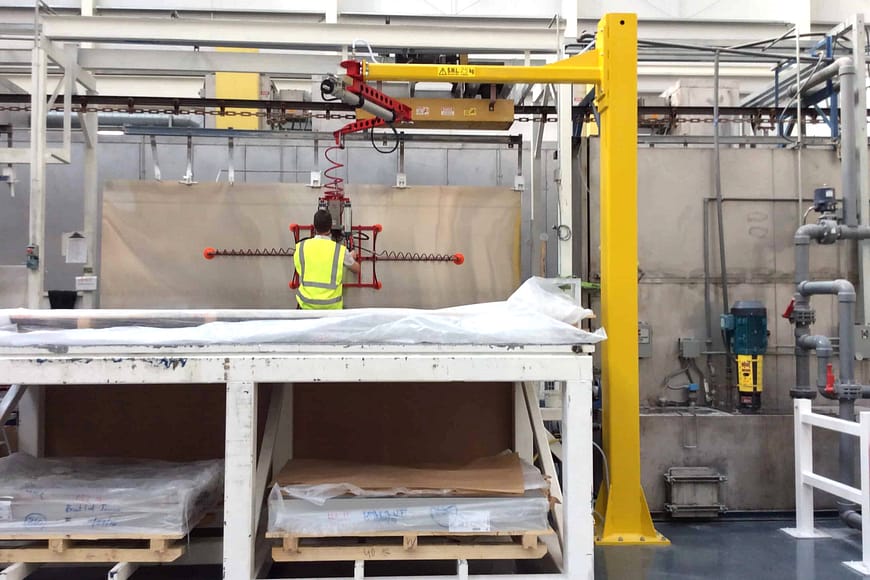

Articulating Jib Crane

Capacity: up to 1 ton
Arm length: up to 5 m
Lifting height:up to 4m
Work duty: M3-M5
Rotation angle: 120-360°
Raged voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode: Floor control / Remote control

Balance Jib Crane

Capacity: up to 1 ton
Arm length: up to 2m
Lifting height:up to 2m
Work duty: M3-M5
Rotation angle: 340°
Raged voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode: Floor control / Remote control

On-Site Installation or Remote Instruction Is Available

Trust building is really hard, but with 10+ years of sales experience and 3000+ projects we've done, both end-users and agents have gained and benefited from our cooperation. By the way, Independent sales rep recruiting: Generous commission / Risk free.
