Underslung Cranes

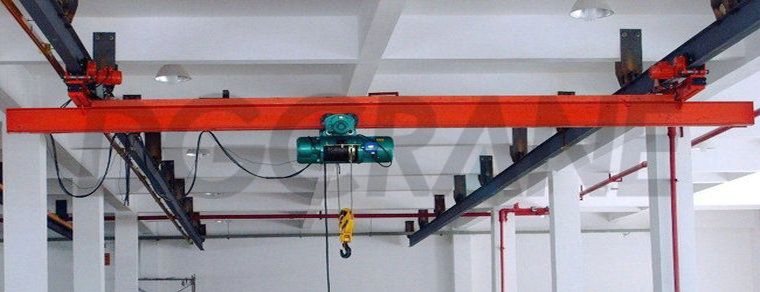

The underslung overhead crane is used in conjunction with the CD1, MD1 electric hoist to become a light and small crane that runs on rails. Used in machinery, assembly site, warehouses, and other places
- Capacity: 0.5-10ton
- Span length: 3-22.5m
- Lifting height: 6, 9, 12, 18, 24, 30m
- Work duty: A3 A4
- Raged voltage: 220V~690V, 50-60Hz, 3ph AC
- Work environment temperature: -25℃～+40℃, relative humidity ≤85%
- Crane control mode: Ground control, remote control
- Reference Price Range: $700-6300/set
Overview
The LX underslung overhead crane is suitable for working under the conditions of working level A3～A4, working environment temperature -25℃～+40℃, relative humidity ≤85% and no flammable, explosive and corrosive medium environment. The lifting weight is 0.5 to 10 tons, and the span is 3 to 22.5 meters.
The product has the advantages of compact structure, good rigidity, easy operation, low noise, safety and reliability, and beautiful appearance.
The main components are: bridge frame, crane operating mechanism, electric hoist, and electronic control system.
Advantages
- Compact structure
- Good rigidity
- Easy operation
- Low noise
- Safety and reliability
- Beautiful appearance
- Consistent quality with overhead traveling crane benefits
- End truck of optimized structural design
- Rigid beam girders or welded box girders for optimum load distribution
- Loads can be handled immediately adjacent to the building wall by means of girder ends tailored to the application requirements
Introduction
To install an underslung cranes, the roof structure must have the ability to withstand the weight that imposed by the underslung cranes itself and the load. So, before you make the final decision to purchase an single girder underslung cranes, you need to consult with our engineers to make sure that every detail is considered in order to avoid any convenience.
Simply attached to the existing roof structure, this special kind cranes eliminate the need for runway support columns. This way, the entire building floor area is available for production. Peripheral areas of the workshop can be served by using the girder overhangs to extend the travel range of the hoist trolley beyond the runways. Optional latching devices make it possible to transfer the hoist trolley from the crane girder to a branch track and back without having to deposit the load.
Top Running vs. Under Running
- Support structure: Under running cranes can be suspended directly from the roof structure or other overhead beam. Top running cranes need independent columns to support the end trucks and the bridge beam.
- Capacity: As underslung cranes are suspended from the roof structure, they are available only on lighter capacities, usually less than 10 tons. The capacities of top running overhead cranes are much larger. The safe working load of top running cranes can even up to 550 t.
- Configuration: Because of the light capacity, underslung cranes usually adopt the single girder configuration, although double girder under running crane is also available in some special cases. But the top running overhead crane equipped with double girder is more frequent.
- Utilization of space. Something unique to under running cranes is their ability to make full use of the available height and the tight space. They can ensure efficient material handling even in plant where very little space is available.
Options and Components
The electric suspension crane bridge frame is mainly composed of main beam and end beam device. The main beam is the main load-bearing component of the hoist crane, and its lower flange is the electric hoist running track.
Electric suspension cranes are generally designed with 500mm, 750mm, 1000mm cantilevers according to different spans. When the electric hoist is fully loaded to the cantilever end, negative wheel pressure is not allowed on the opposite side.
The end beam device is located directly above the span of the two ends of the main beam, and is connected to the main beam through a single-hole hinged connecting plate. Rubber buffers are installed at both ends of the beam to avoid structural damage due to collision.
The balance shaft connection structure is adopted between the main beam and the end beam, which is simple in structure, convenient to install, and convenient for transportation and storage.
The electric suspension overhead crane trolley running mechanism consists of two sets electric trolleys and two sets driven trolleys, which are connected to the end beam connecting plate by two bolts under the wall panel.
The motor adopts ZDY series conical rotor brake motor. The motor has the characteristics of good heat dissipation, long service life, safety and reliability.
The body and cover of the drive unit are cast from gray iron HT200 with good anti-vibration performance. The gears and gear shafts are 40Cr forgings, and the hardness is HB235～269.
The wheel set is formed by die forging of 45# steel, and the heat treatment hardness is 300～380HB.
The wheel axle is made of 45# steel, and the heat treatment hardness is 235～269HB.
Electric hoist is to be used on underslung overhead crane, each electric hoist will perform dynamic and static load test, rise and drop pressure tests. The baking paint process is adopted to enhance the adhesion of the paint film and improve the appearance quality. Assembly line ensures product quality.
Pendant panel, Remote control. The crane can also be equipped with two sets of operating devices, namely: ground + remote control .
However, due to safety issues, the two operating modes can only be switched and cannot be used at the same time.
The control circuit voltage is generally AC 36V safe voltage.
Crane electrical equipment can ensure that the crane has safe, accurate and reliable transmission performance, monitoring performance and protection performance.
According to customer requirements, the power supply can be designed as a three-phase electrical control system below 690V and a frequency of 50-60HZ.
A Standard Single Girder Overhead Crane Will Be Produced in 20 Days.
Incoming Material Sample Test
Steel plate uncoiling and falttening
Steel sheeting cuttig
Rolling groove
Welding stiffener
Welding I beam and cover plate
Crane pre assembling
Crane painting
Crane packing and delivery
Tips:
Lead time of cranes with different voltage may be 10-15 days longer as electrical components need to be customized by our supplier.Types of Cranes for Different Working Conditions
Single girder underslung overhead crane
- Hang on the building roof or superstructure, simple and reliable installation, low cost
- Fast and reliable realization of material transportation in a specific area and precise positioning of various components
Flexible monorail suspension crane
- Hang on the building roof or superstructure, simple and reliable installation, low cost
- The track direction can be flexibly arranged according to the construction situation of the customer’s workshop to meet the special requirements of specific products and working positions in the production and processing
Flexible double girder suspension crane
- Hang on the building roof or superstructure, simple and reliable installation, low cost
- Fast and reliable realization of material transportation in a specific area and precise positioning of various components
- Higher lifting height, higher span compared to Single girder underslung overhead crane
Telescopic beam cranes
- Telescopic beam cranes are equipped with a telescopic beam between or under the main beams of the crane
- Telescopic beam cranes can serve areas that are difficult to access
