4pcs of Ø450 Forged wheel Frame exported to Thailand

February 18, 2023

Wheel material: Forged 42CrMo
Wheel hardness: HRC45±5
Shaft material: 42CrMo
Shaft hardness: HB220-280
Cover material: 42CrMo
Bushing material: CuZn25Al6Fe3Mn3
Frame material: Q235

For this client, we have cooperated many time, the previous product is crane wheel, rope drum and overhead crane. This time, the product is wheel frame. Due to the frame unable to bend, we suggest welding the bending parts. After grinding the welded parts carefully, the appearance and quality make the client successfully.

Below is our finished crane wheel and wheel frame pictures.

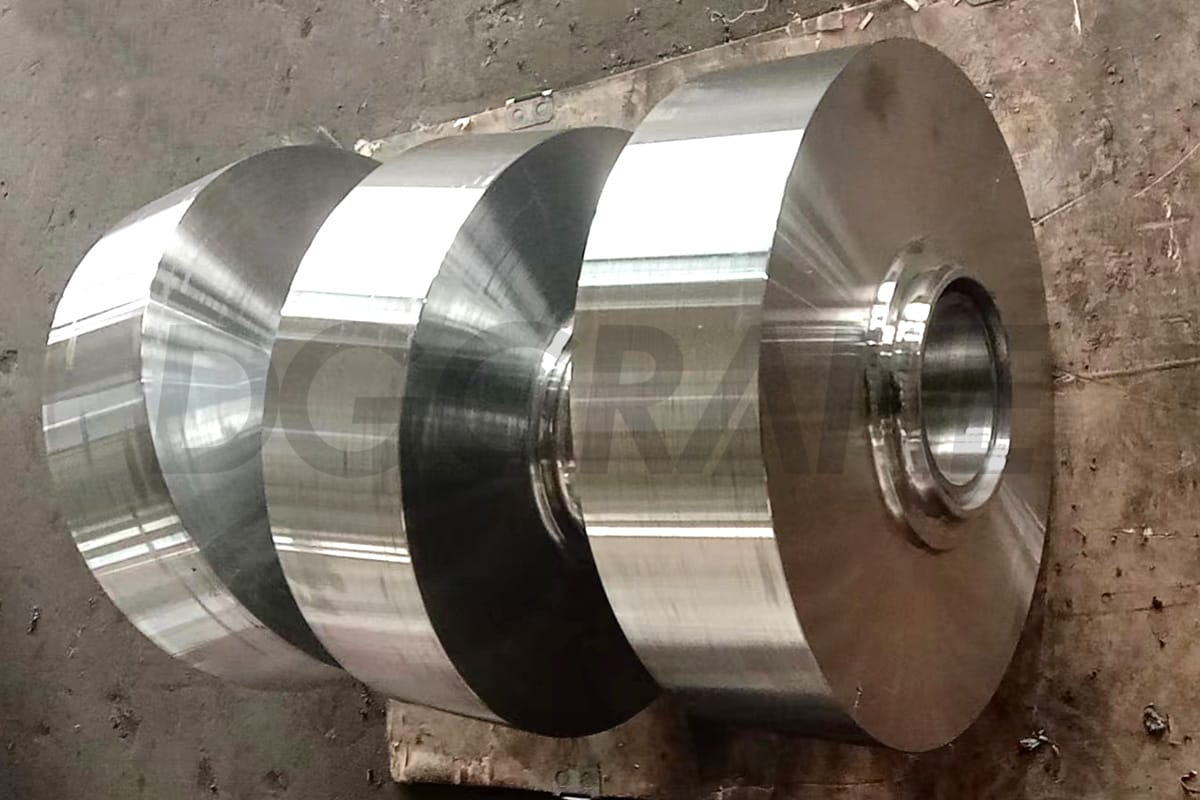

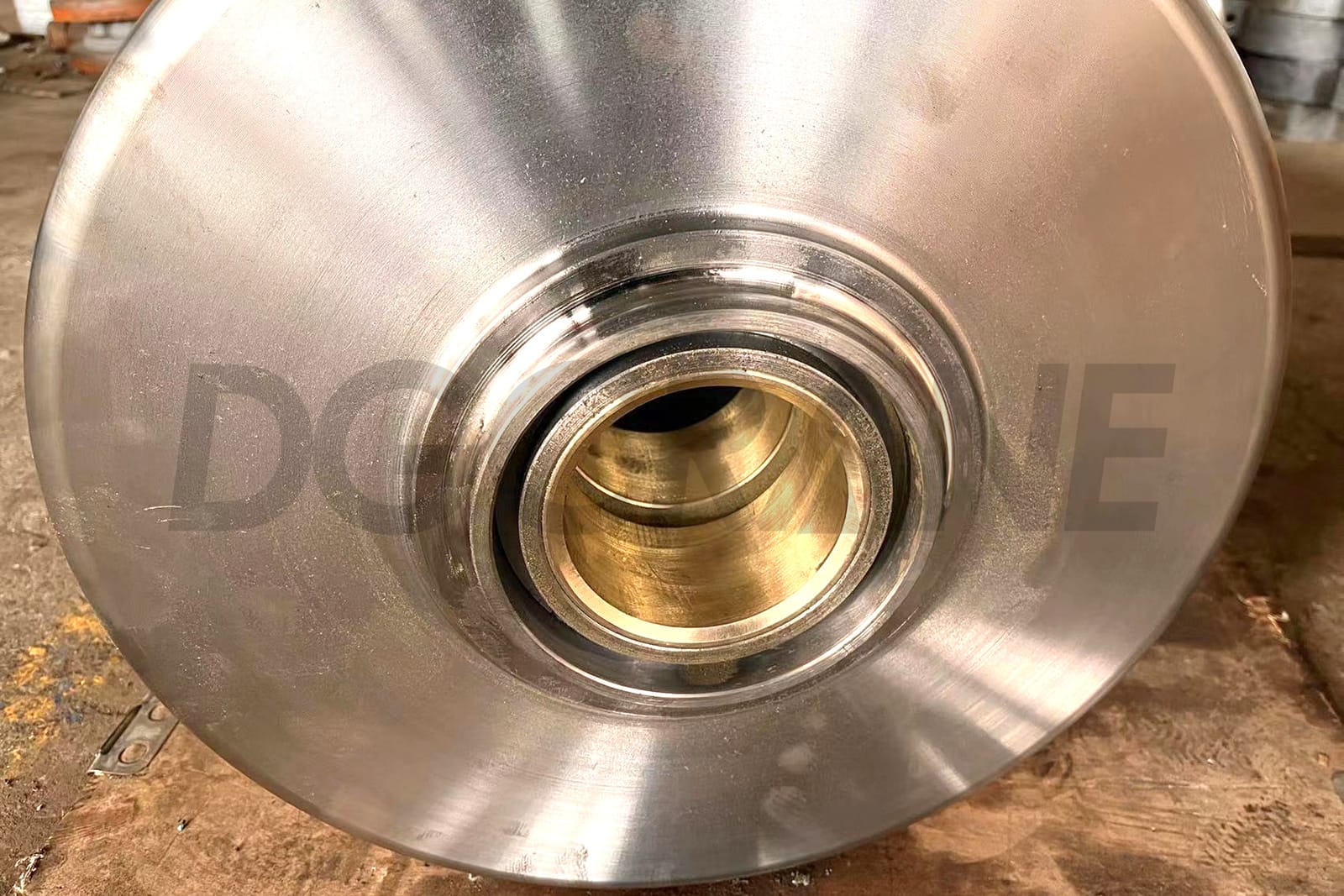

Finished Wheel Picture

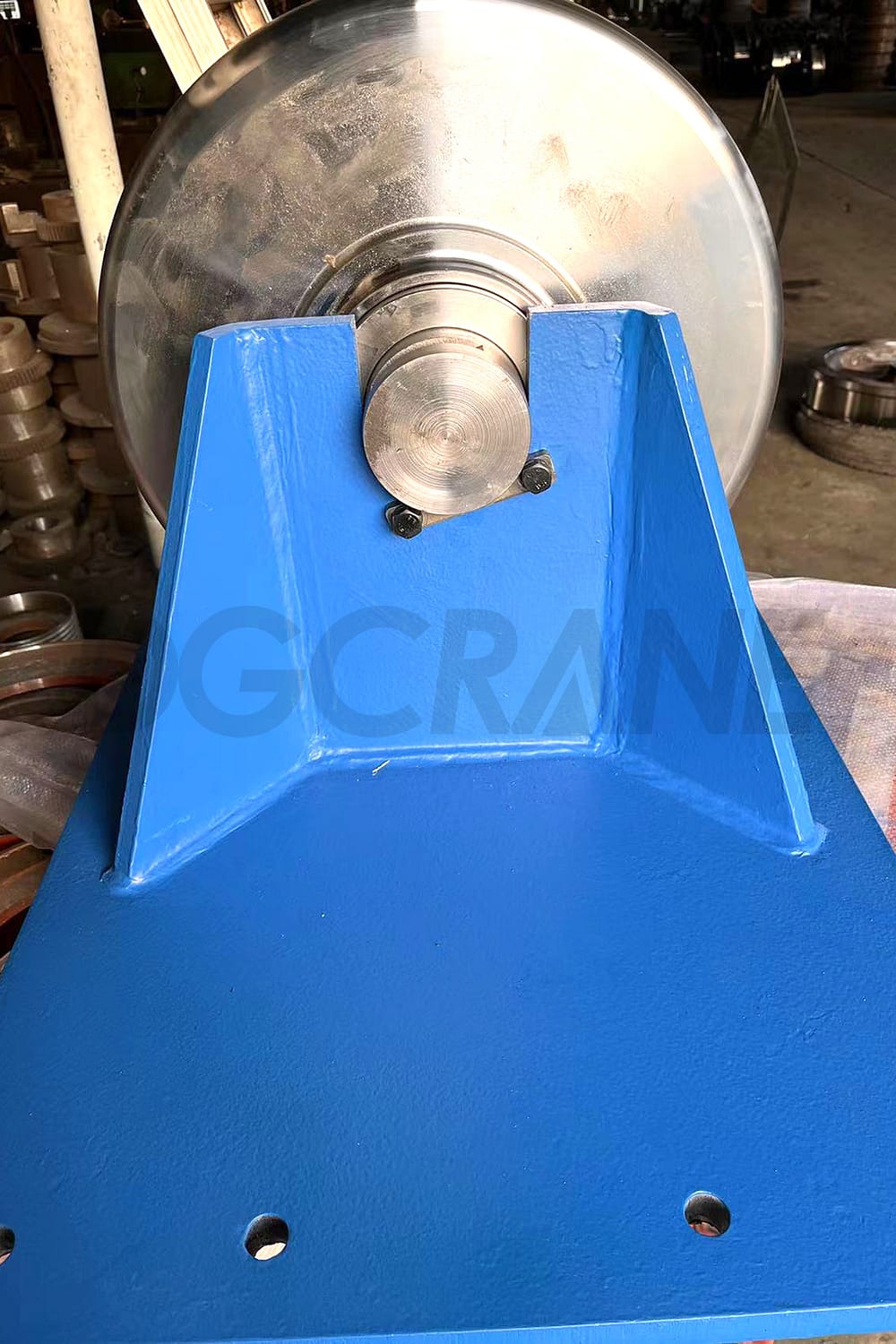

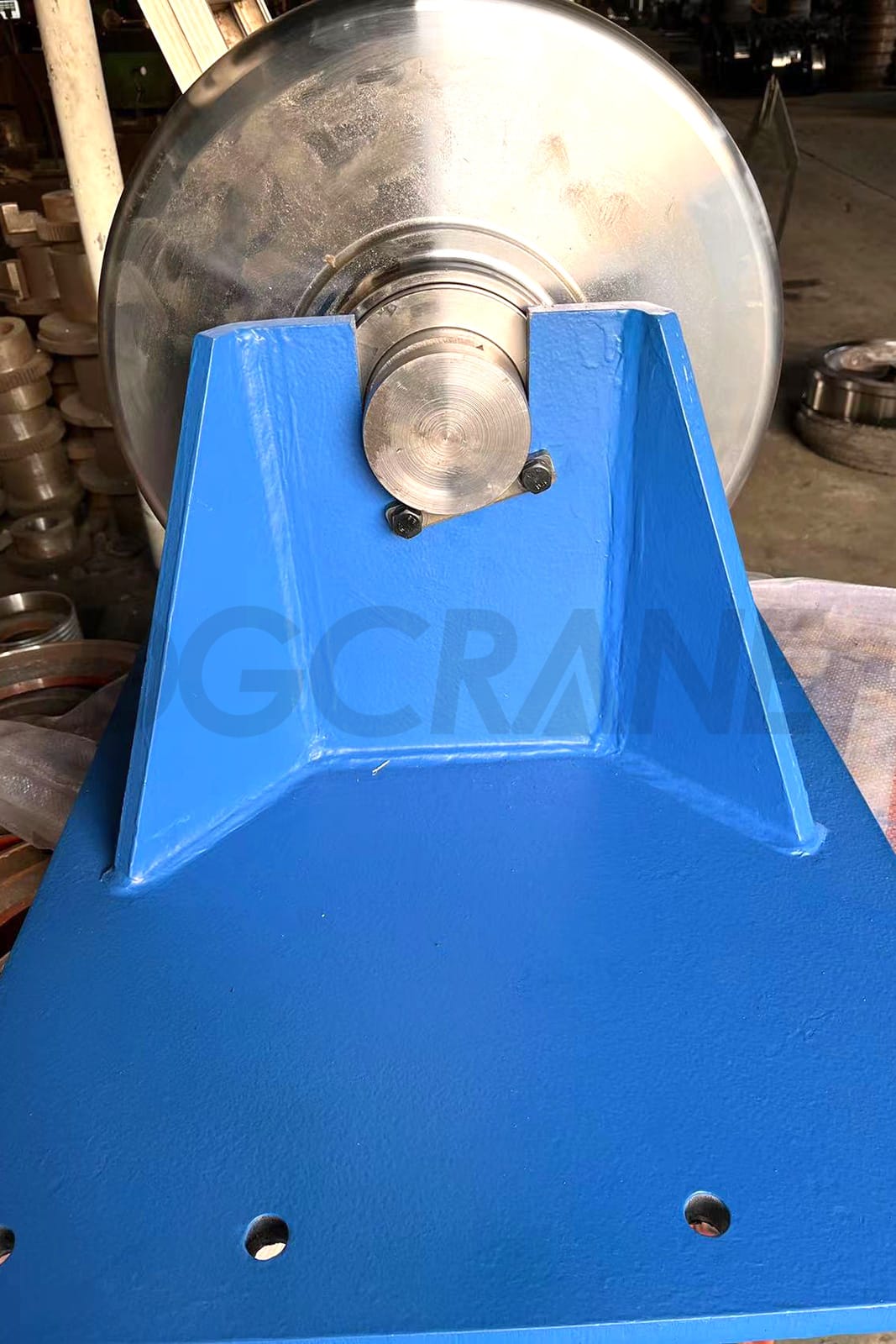

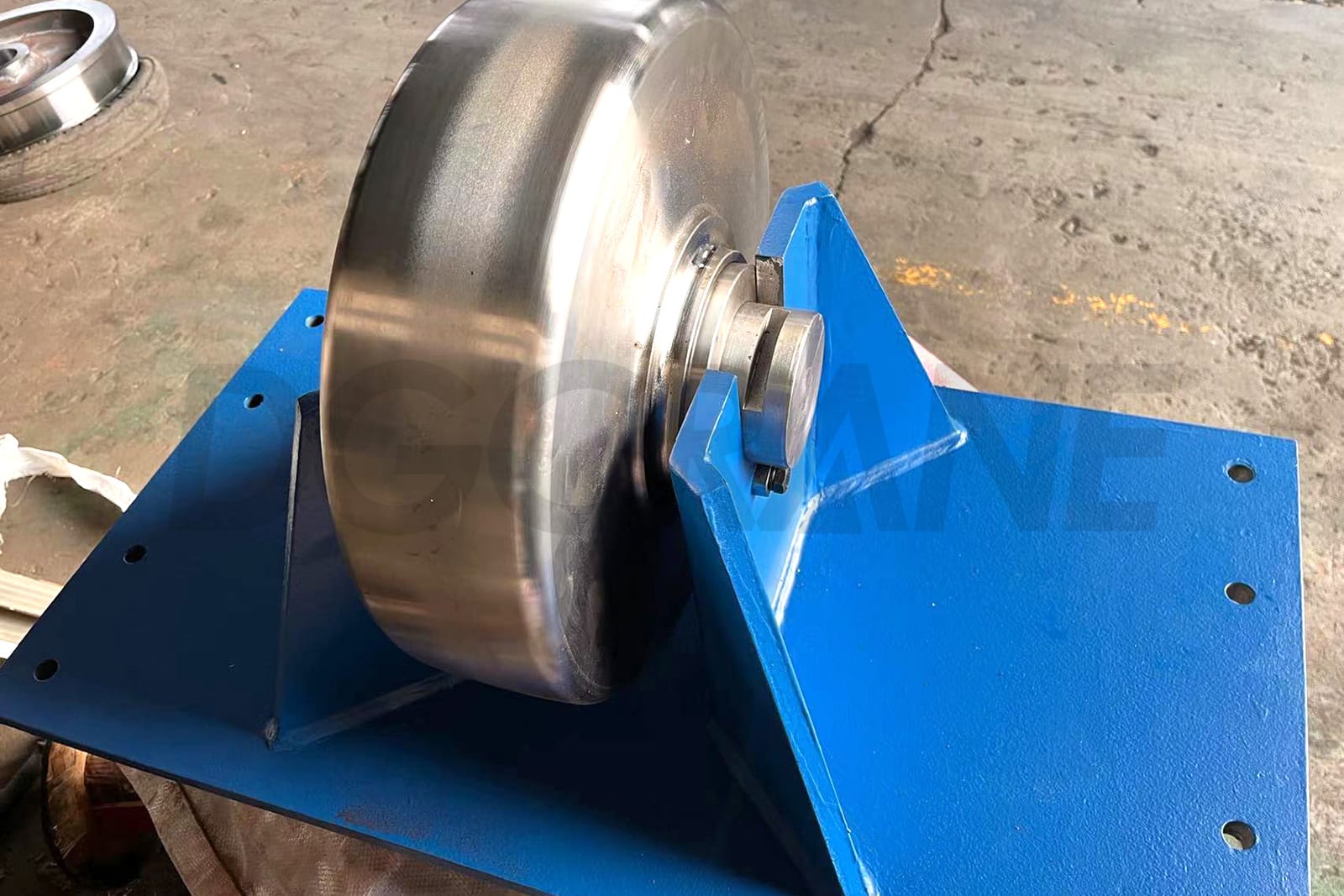

Finished Wheel Frame Picture

For the Package, we choose plastic wrap and strong plywood crate to protect the wheel, below picture for reference.

Package Picture
