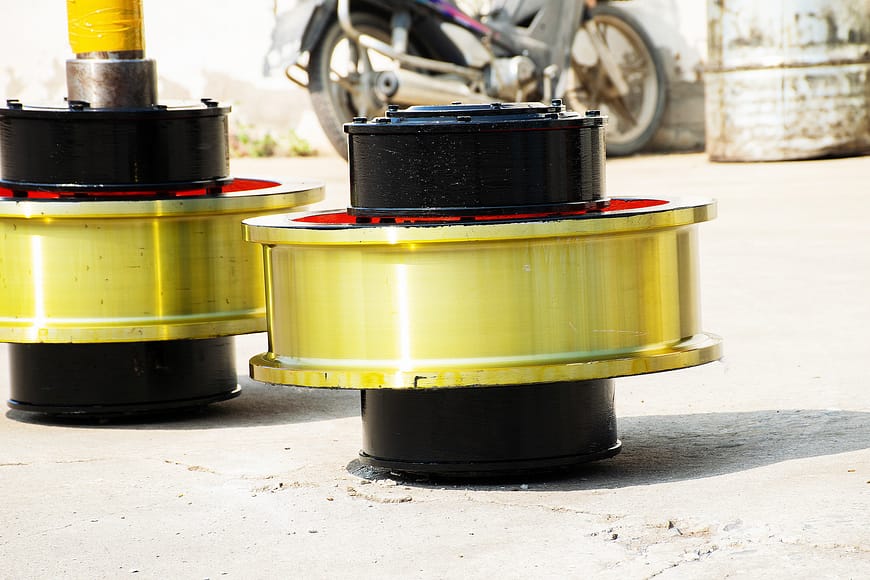

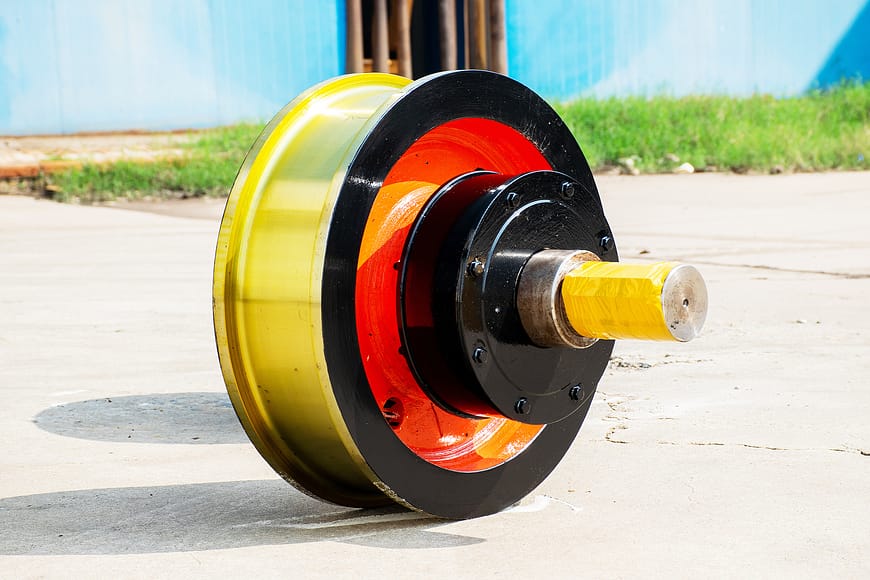

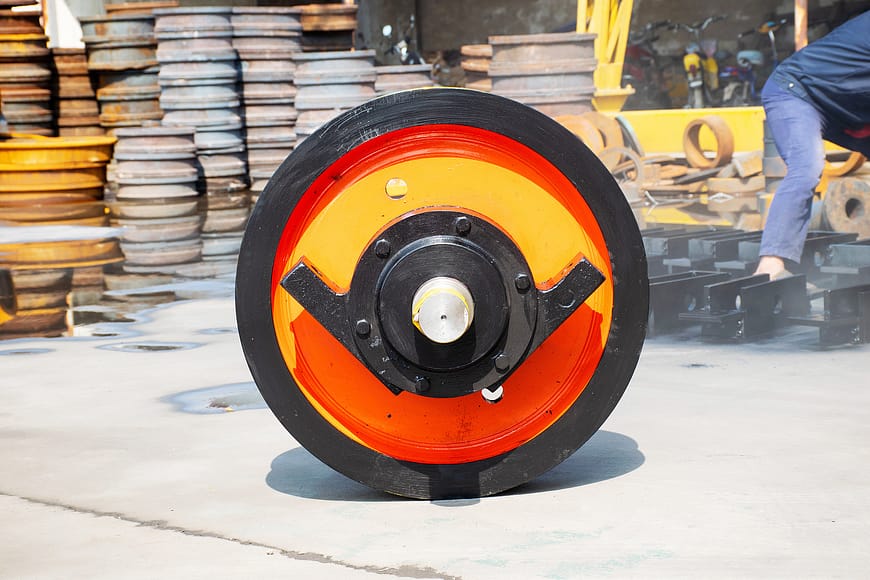

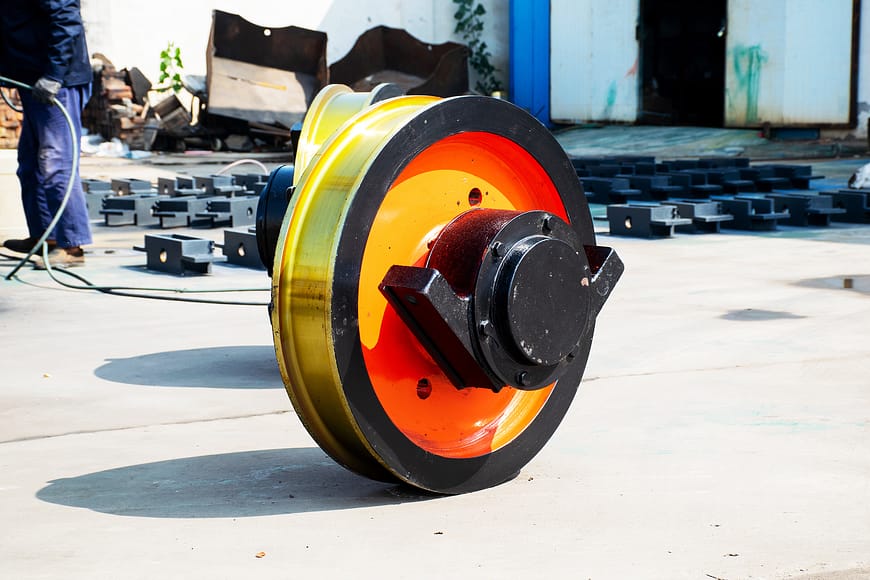

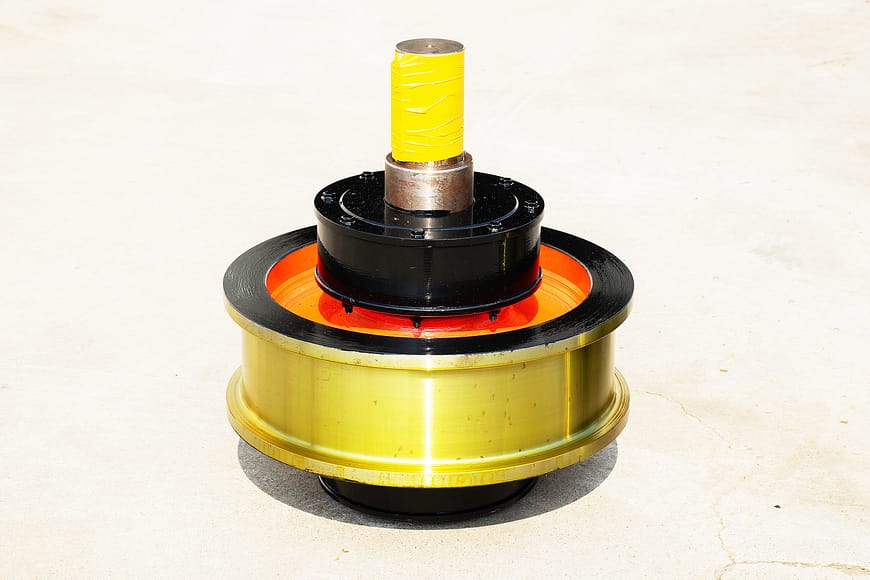

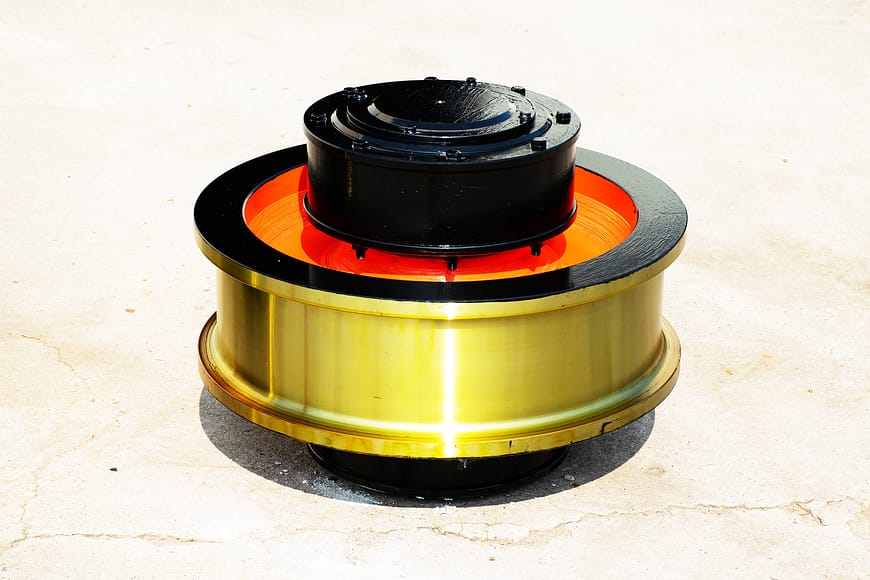

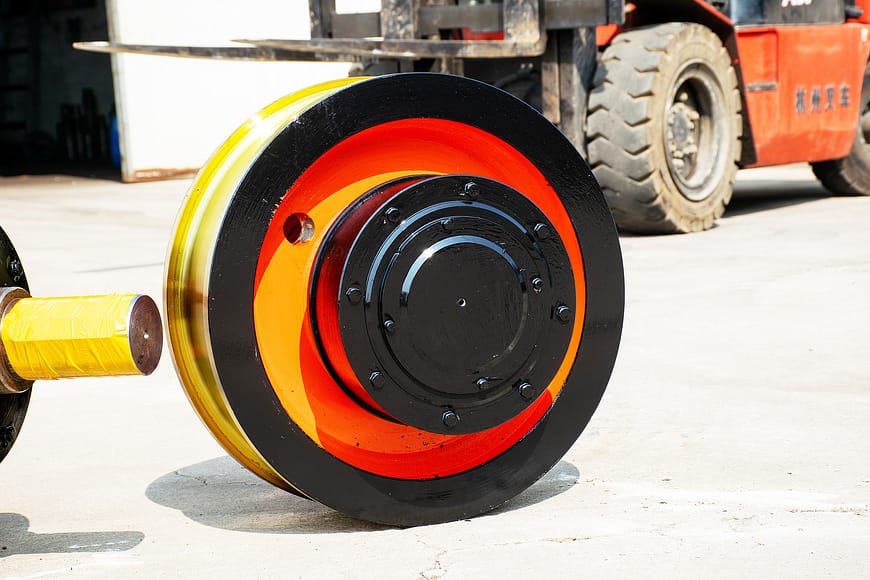

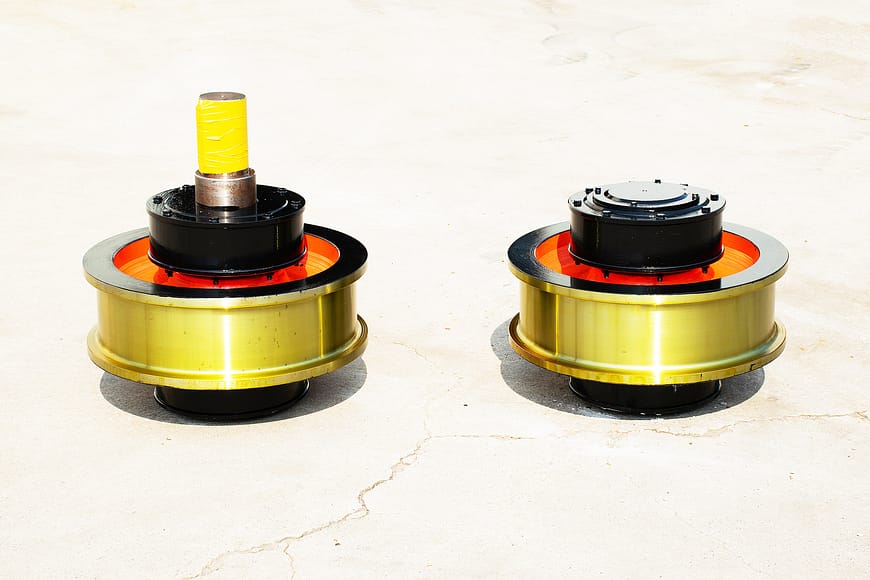

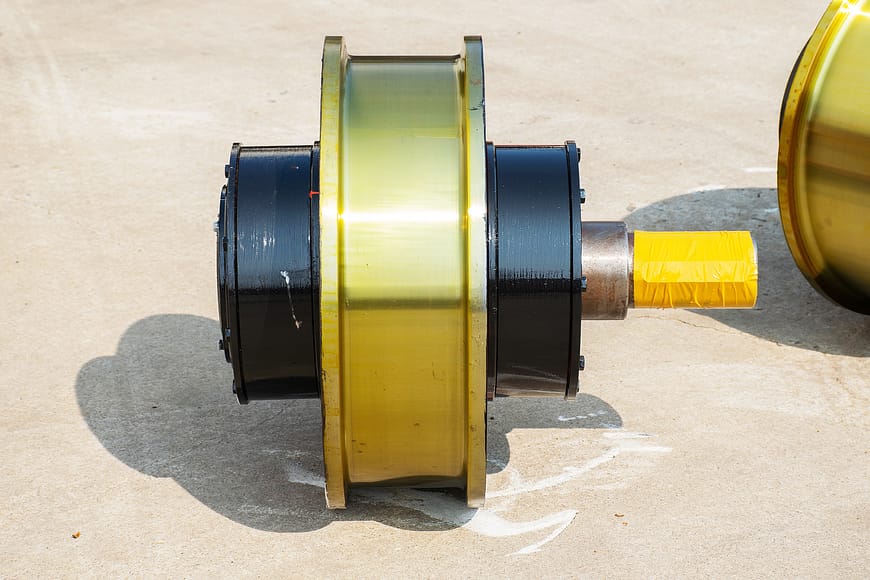

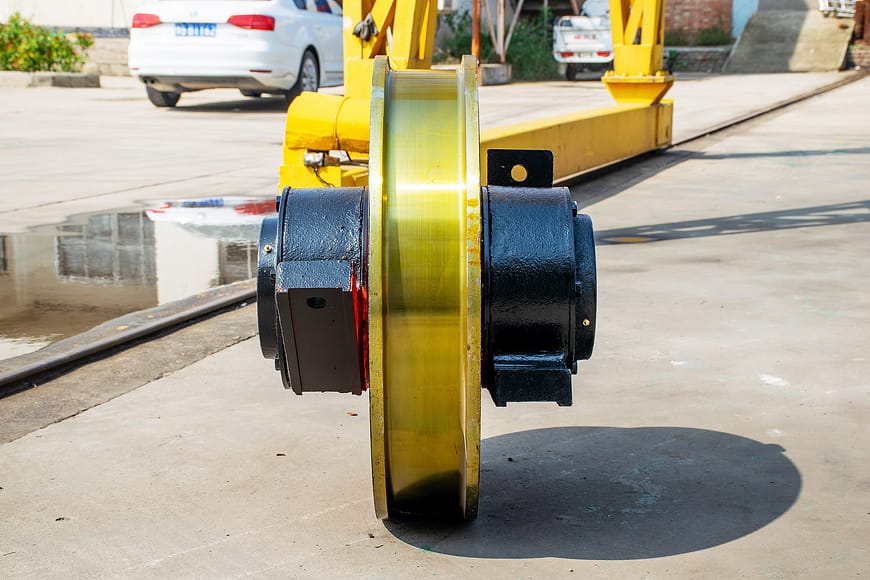

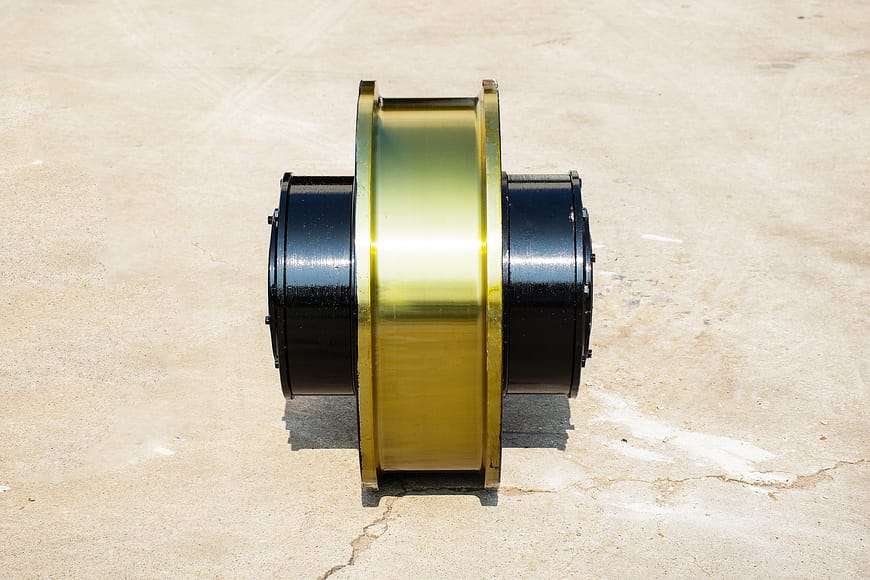

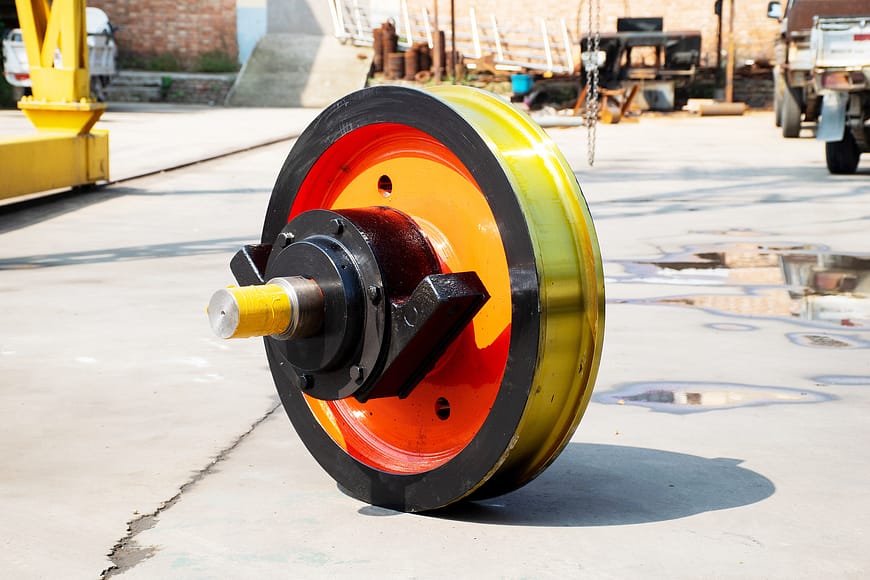

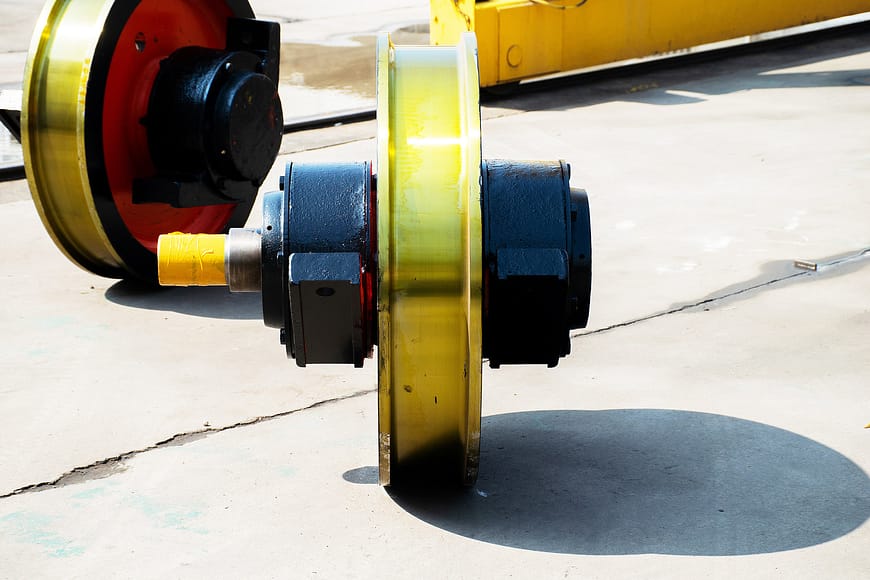

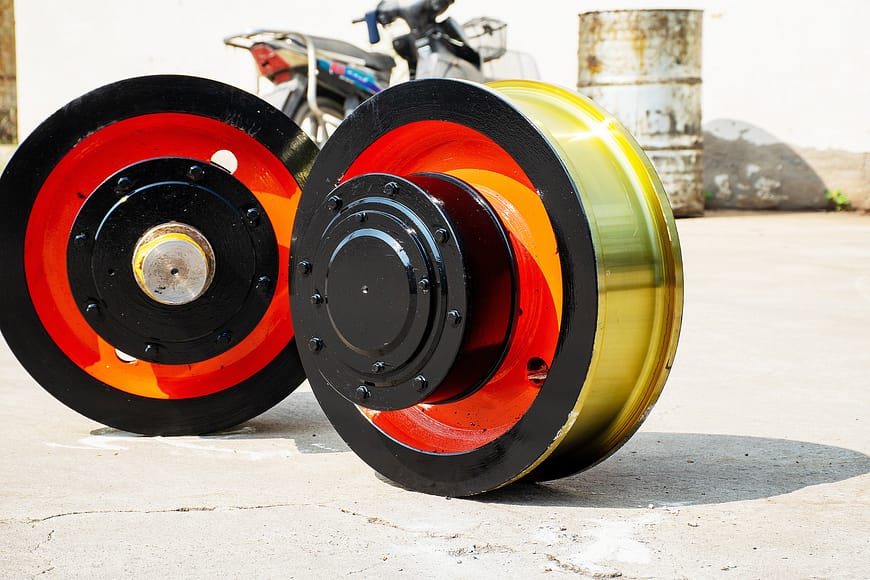

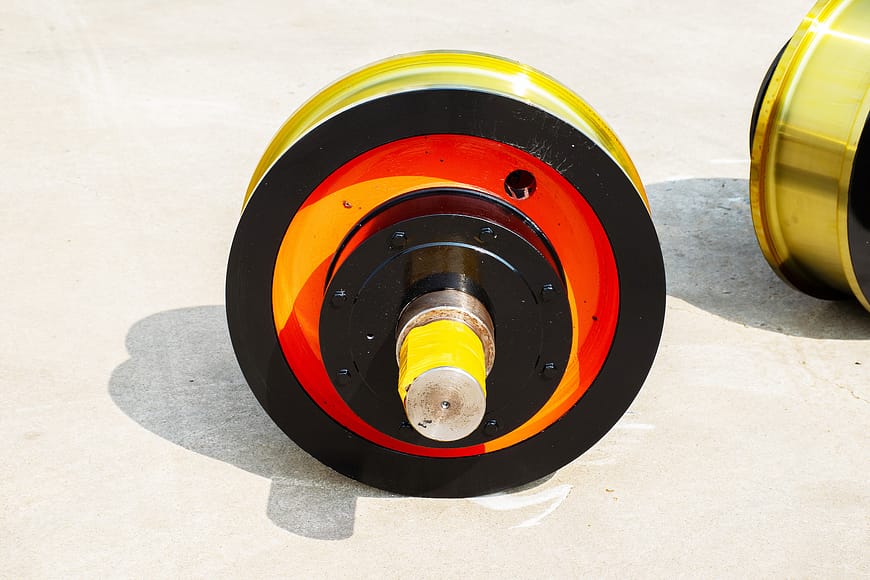

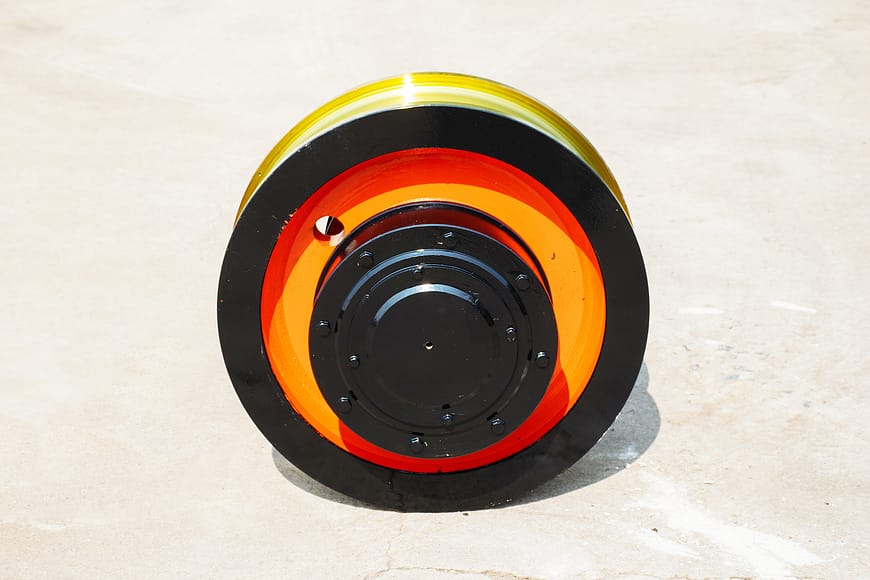

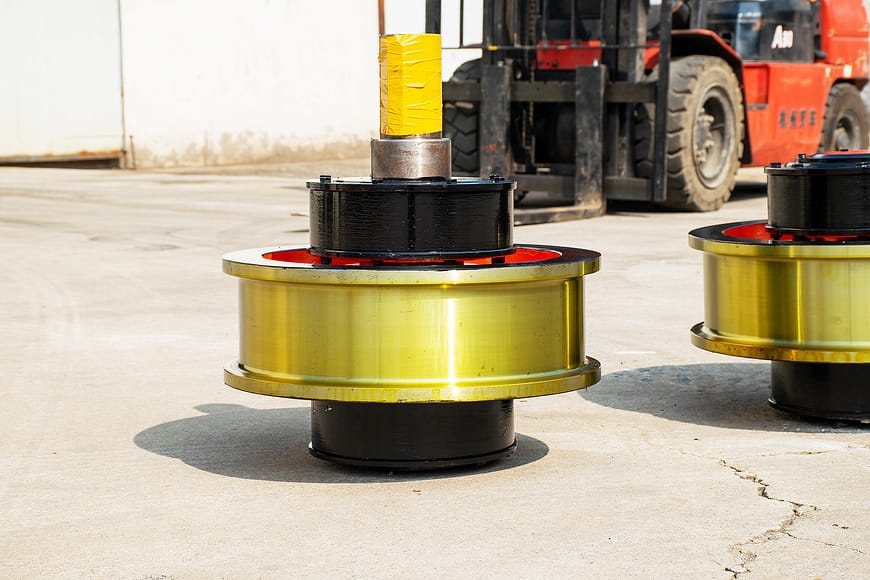

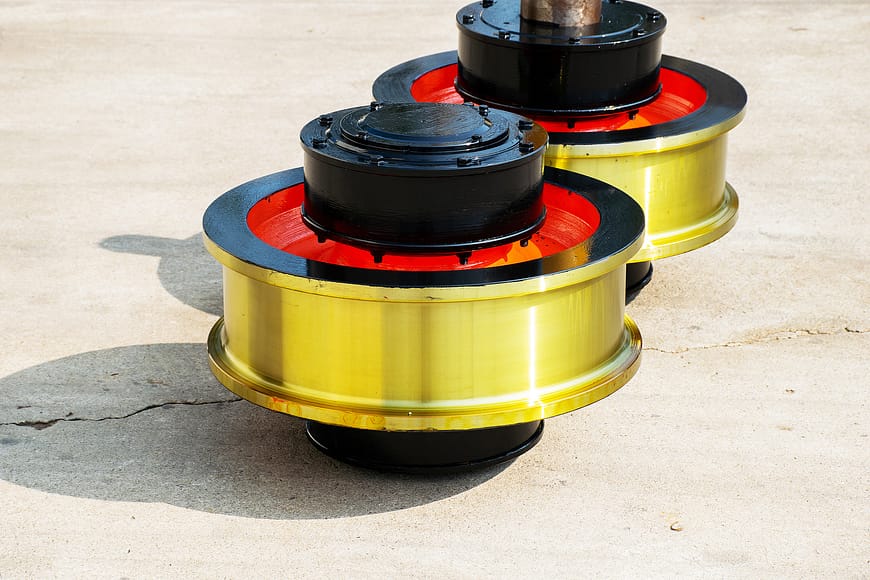

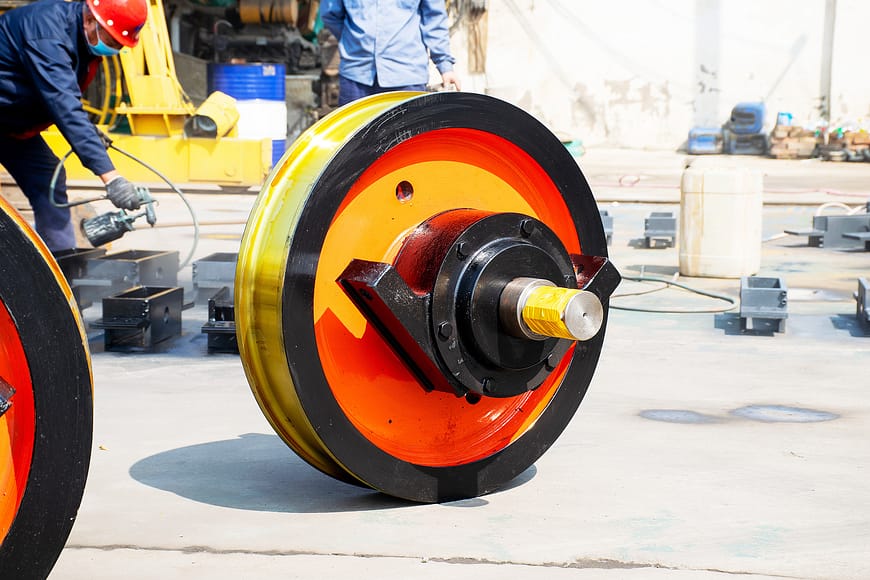

Crane Wheels
Flanged crane wheels are mainly used in all kinds of lift machines. Flanged crane wheels are various, like single rim wheel, double rim wheel, non-rim wheel, and other nonstandard wheels.
- Material: 4140/SCM440 /42CrMo, ssw-Q1R/65#steel, 65Mn,50SiMn,QT800, ZG35SiMn, SSW-Q1
- Rated Loading Capacity: 1~160 ton
- Diameter: Φ250, Φ350, Φ400, Φ500, Φ600, Φ700, Φ800, Φ 1000, Φ 1200 or as your require
- Technology: Casting or forging
- Quenching Depth: No less than 20mm
- Heat Treatment: Quenching and tempering
- Work environment temperature: -25℃～+40℃, relative humidity ≤85%
- Reference Price Range: $750-4500/set
Overview
FLANGED CRANE WHEELS are mainly used in all kinds of lift machines, such as single girder overhead crane, double girder overhead crane, gantry crane, and port crane etc. FLANGED CRANE WHEELS are various, like single rim wheel, double rim wheel, non-rim wheel, and other nonstandard wheels. The material of wheels includes 42CrMo4, AISI4140, 41Cr4, A504, SSW-Q1R, 65Mn, 1045, 1055, 1060, 1070, and ductile iron 400, 500,600,700 etc. DGcrane Wheel apply different crafts of different material, precisely control the quench and temper temperature, so that the wheel can reach the metallographic structure and mechanical property.
There’re three heat treatment methods according to different requirements: the first is through hardening & tempering, wheel surface hardness HB300-380, mainly used for standard crane products.
The second is surface medium frequency quenching & termpering, wheel surface hardness HB300-380 or HRC50-56, mainly used for products which with low wheel center hardness & high wheel surface surhardness requirements and unsuited whole heat treatment.
The last one is through hardening & tempering, wheel surface hardness up to HRC50-56, wheel surface hardness decay with depth due to the differences of raw materials, forged alloy steel wheels’ the depth of hardening layer up to 15mm and thus low hardness attenuation, mainly used for port crane, bucket-wheel excavator, bucket-wheel stacker reclaimer and other heavy load products.
FLANGED CRANE WHEELS are replaced because of flange wear, flange breakage, and mechanical overloads characterized by pitting and spalling. Each of these in-service factors must be carefully considered before the combination of wheel design, material selection, hardness pattern and heat-treating technology is selected.
A Standard Crane Wheels Will Be Produced in 20 Days.
On-Site Installation or Remote Instruction Is Available
